Properties

Create energy scale

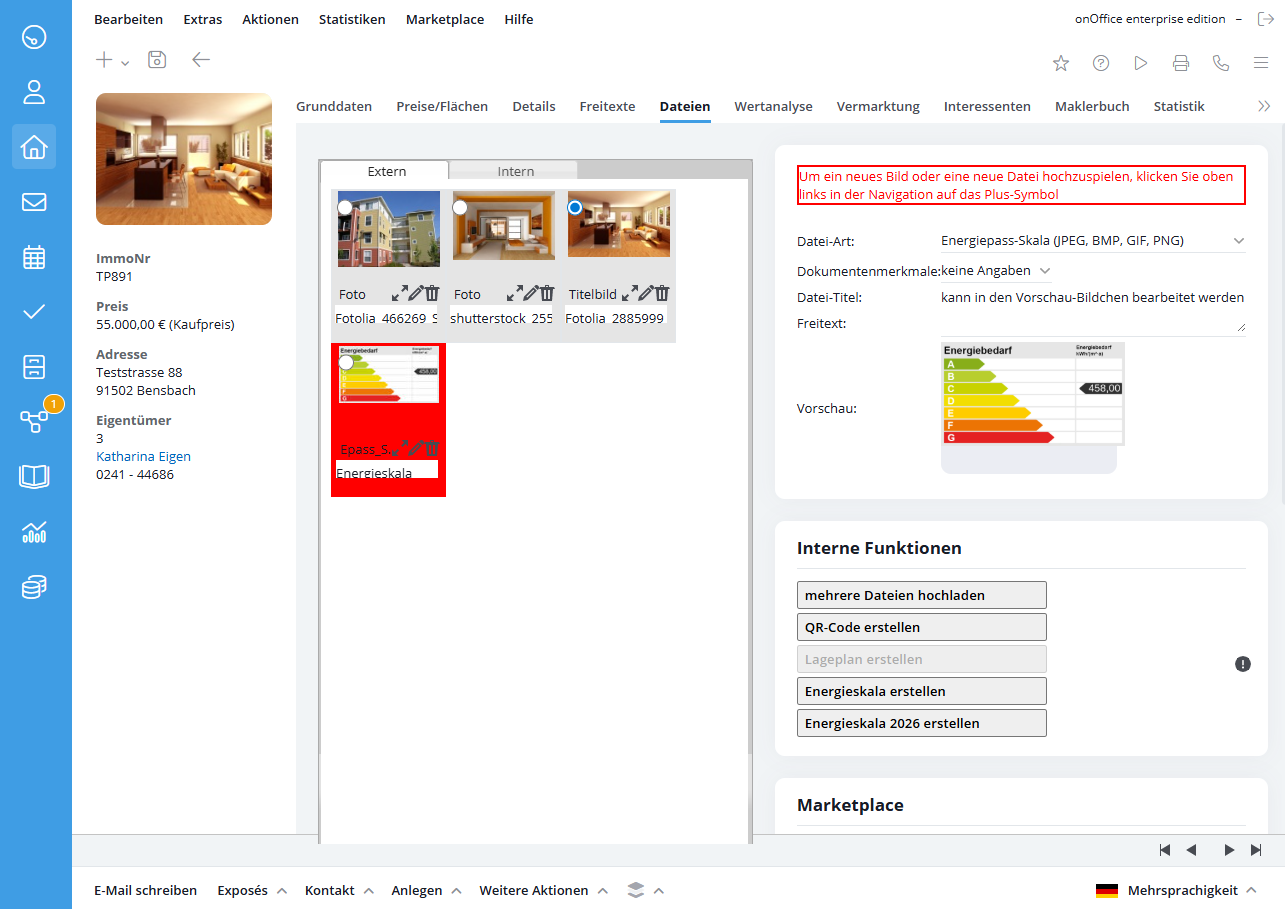

In onOffice you have the possibility to create a graphic of the energy scale. This scale is made up of the information on the energy performance certificate in the property

The energy scale for residential real estate is based on the scale for Germany. A specific scale is used for Austria and Spain

Note:

Please make sure that you enter the correct data in the ‘Details’ tab.

The country depends on the information in the basic data of the property. If this is not entered, the country of the real estate advisor is evaluated. If this is also not given, the land of the group of the real estate supervisor is used. If no country can still be determined, the country from the client basic settings is used.

The energy scale can be created for residential property for the countries Germany, Austria and Spain. Different fields are evaluated for the individual countries or used to draw up the energy scale.

  • Germany: The German energy scale distinguishes between demand and consumption scales. The specification of the type of badge controls the type of scale. In order to be able to create the scale, the corresponding fields for demand or consumption must be filled. By specifying the energy efficiency class, the scale can be created on the Files tab.
EnergieverbrauchsskalaEnergieverbrauchsskala

  • Austria: For the energy scale for Austrian real estate you need 4 fields under Extras >> Settings >> Administration >> Input fields Module: Real Estate – Category: Condition unlock.
    Field Content
    ea_fgee_at Total energy efficiency factor
    ea_hwb_at Heating heat demand (AT)
    ea_hwb_class_at Class Heating heat demand
    ea_fgee_class_at Class Total energy efficiency factor

    If these fields are filled in an Austrian real estate dataset, the energy scale can be created on the Files tab.

Energieskala Österreich

  • Spain: For the Spanish Energy Scale, fields in the administration must also be activated.
    Field Contents
    co2_emission class CO2 emission class
    co2_emission CO2 emission

    Furthermore, you must enter the value of the ‘energy requirement’ in the field. The special feature of the Spanish energy scale is that it is created with 1 or 2 columns. If the fields of the CO2 emission class are not filled, the scale can be created with a column.

Energieskala SpanienEnergieskala Spanien Bild 2

  • Other countries: If another country is set which does not correspond to the three described, the energy scale is used by Germany
